Measure Your Shade:

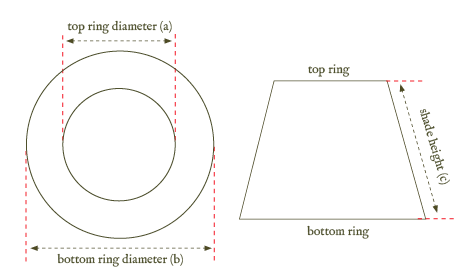

CONICAL SHADE Take the three
measurements shown at right.
1. top ring diameter (a)
2. bottom ring diameter (b)
3. height of shade (c)
The top ring determines shade size:
3 – 5 inches = small
6 – 8 inches = medium
9 – 12 inches = large
measurements shown at right.
1. top ring diameter (a)
2. bottom ring diameter (b)
3. height of shade (c)
The top ring determines shade size:
3 – 5 inches = small
6 – 8 inches = medium
9 – 12 inches = large

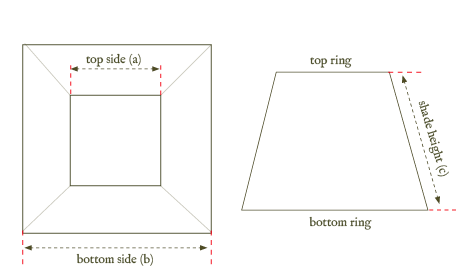

PANEL SHADE Take the three
measurements shown at right.
1. top side (a)
2. bottom side (b)
3. height of shade (c)
The top side determines shade size:
4 – 6 inches = small
7 – 9 inches = large
measurements shown at right.
1. top side (a)
2. bottom side (b)
3. height of shade (c)
The top side determines shade size:
4 – 6 inches = small
7 – 9 inches = large

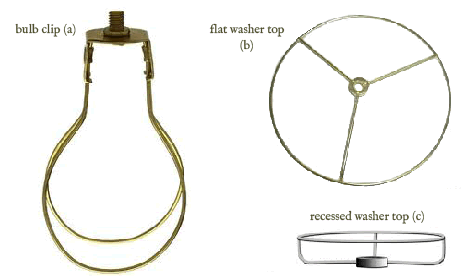

SHADE MOUNT FITTINGS
Determine what type of fitting your
lamp requires (see figure at right).
1. bulb clip (a)
2. flat washer top (b)
3. recessed washer top (c)
Determine what type of fitting your
lamp requires (see figure at right).
1. bulb clip (a)
2. flat washer top (b)
3. recessed washer top (c)
Note: If your shade has characteristics that do not match those shown above, please call us and we'll do our best to accommodate your needs.
